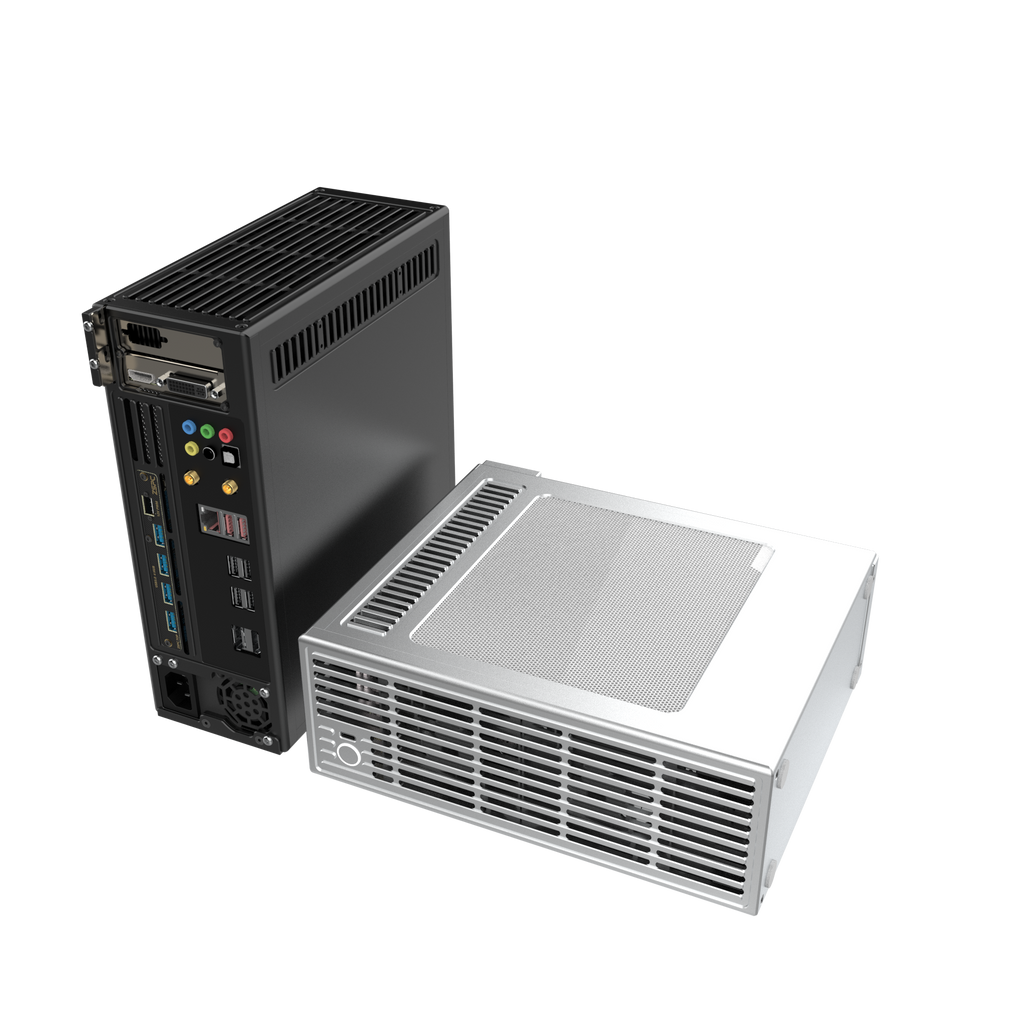

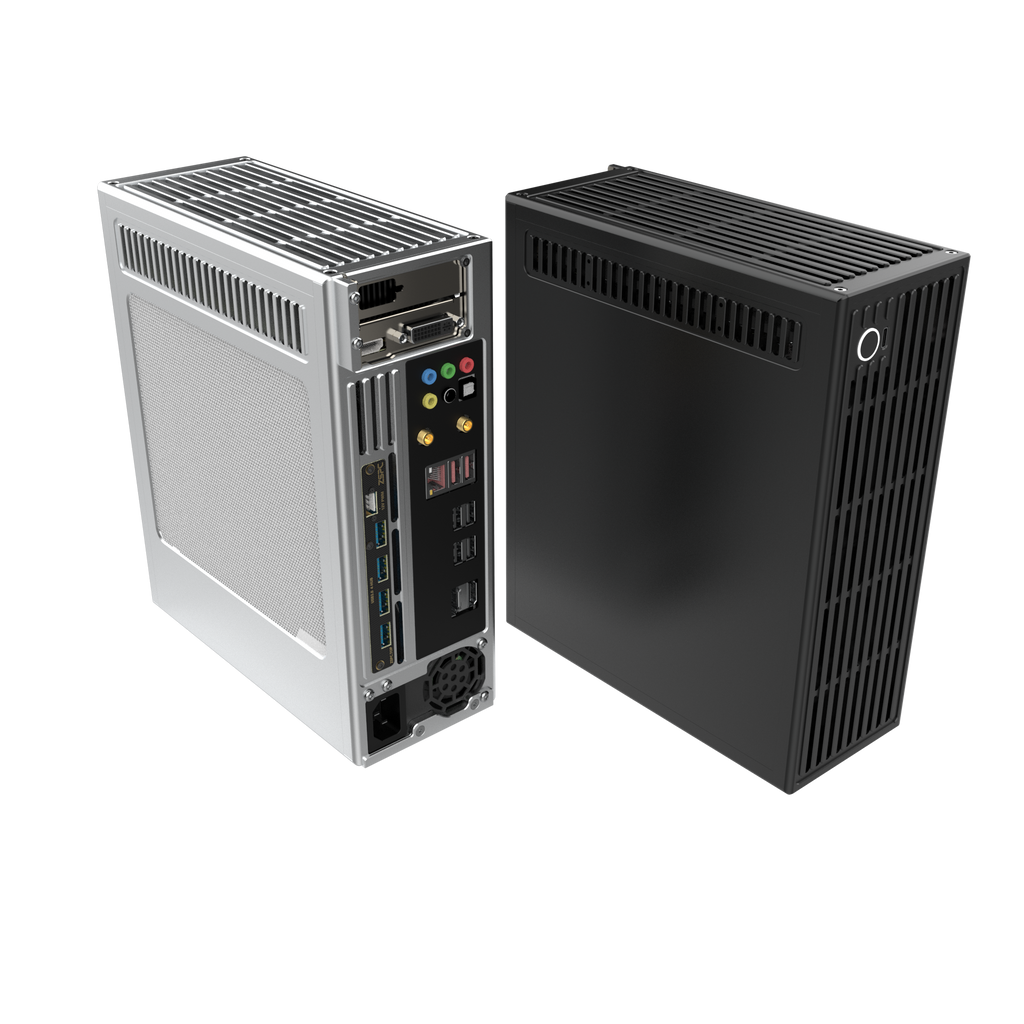

ZS-D2 V4.1 case
$110.00
Product Dimension Drawing
Product Parameter Table
Internal Hardware Layout of the Case
All case components shipped in flat loose packaging
1. Rear Side Panel
2. Front Side Panel
3. Top Panel
4. Bottom Panel
5. Front Panel 6. Rear Panel
7.SATA Hard Drive Bracket
8. Graphics Card Fastener
9. External PWM Cable
10. Rear M.2 SSD Thermal Pad
A. 8025 Fan Screws,
B. Case Exterior Screws,
C. GPU Bracket Screws,
D. Rear & Bottom Panel Connecting Screws,
E. Rear IO Mounting Screws,
F. Power Supply Screws,
G. Fan Grill, H. Motherboard/SSD/GPU Baffle Screws,
I. H2.0 Hex Screwdriver
---------------------------------------------------
Installation Guide
Step 1: Install the Front Panel Assembly
There are two installation modes for the front panel: install (2.5-inch SATA hard drive*2 + 8025 fan*1) or (8025 fan*2).
Installing 2.5-inch hard drives requires (7*1) (H*6).
Installing fans requires (A*8) (G*2).
Note: The content in brackets means (Part Number * Quantity).
Attention: Fan grills must be installed together with the 8025 fan screws!! (The fan grill serves to compensate screw length and prevent power cables from scraping the fan blades.)
Consequence of omission: Excessively long screws will bulge the front panel outward.
---------------------------------------------------
Step 2: Install the Rear Side Panel Assembly
Mount the motherboard, graphics card and power supply onto the rear side panel.
Use (H*4) for motherboard installation.
Note: The content in brackets means (Part Number * Quantity).
If an M.2 SSD is mounted on the back of the motherboard, attach the thermal silicone pad (10*1).
---------------------------------------------------
Step 3: Install the Bottom Panel & Rear Panel Assembly
Use (C*2) (H*2) to mount the GPU bracket and secure the graphics card.
Use (B*2) to connect the front panel and bottom panel.
Use(D*2) to connect the bottom panel and rear panel.
Use (F*4) to install the power supply.
Use (E*3) to install the rear IO assembly.
Note: The content in brackets means (Part Number * Quantity).
Note: The GPU baffle needs to be detached separately and installed onto the case rear panel.
---------------------------------------------------
Step 4: Install Side Panel & Top Panel Assembly
If no graphics card is installed, two 8025 fans can be fitted on the top panel, and a shielding cover shall be installed at the GPU vacant position.
Use (A*8) (G*2) for fan installation.
Use (E*3) for vacant cover installation.
Use (B*4) for top panel installation.
Note: The content in brackets means (Part Number * Quantity).
